BrewBuilt™ X1 Uni Conical Fermenter

$0.00

The BrewBuilt X1 Uni Conical was born of thousands of hours of research, contemplation, and development. The engineers and critical minds behind its realization scoured years of feedback from home and professional brewers alike to determine the ideal feature set of a stainless-steel conical fermenter. And where standard features fell short, we pushed the boundaries into new territory never before seen on a premium conical fermenter. The end result is a unit purpose-built to advance your fermentation process, improve the quality of your finished beer, and look good doing it. This is the brewing sidekick that you’ll brag to your friends about.

We guarantee that you will love the fit and finish of the X1 Uni Conical. Made entirely of 304 stainless-steel, the quality exceeds what has previously been done in brewing applications and approaches the level of pharmaceutical-grade finish. With flawless welds and a dazzling mirror-polish finish inside and out, the BrewBuilt X1 Uni is easy to sanitize and even easier on the eyes. You’ll probably wanna snap a pic. #BrewBuilt

Extra Large 2” T.C. Dump Valve
Dry hop to your heart's desire. Try as they might, hopheads will have a hard time clogging this conical. With an oversized 2" bottom port, you’ll have all the clearance you need (and even more than some pro brewers) to drop out your dry hop additions with ease. The slick mirror-polish finish on the inside allows flocculating yeast to collect neatly at the bottom of the cone as they slide right down the smooth interior walls. The butterfly dump valve integrates perfectly with the optional Flex Chamber Trub Separator and Yeast Harvester.

Reinforced Four-Leg Foundation
There’s a common complaint seen in the feedback for other conicals on the market—the tippiness of three-legged units. Three legs may be fine when the fermenter is sitting still on an even surface, but users are often forced to purchase a bracing shelf for more stability if they add casters or leg extensions. A conical is only as worthy as it’s foundation, so BrewBuilt modeled the X1 after professional-level brewery tanks with a four-leg, reinforced base. This seemingly small design feature is more expensive to produce, but it's what makes the X1 conical exceedingly stable when compared to other models. When you fill up your fermenter with delicious fresh wort, you want to trust the vessel that’s holding your latest creation. Brewers shouted from the mountaintop that they wanted stronger, sturdier legs right out of the box that don’t require an additional bracing shelf. The four-leg, welded-bar reinforced system is absolutely rock solid. This is an especially critical feature if you plan to add rolling casters so can easily glide the fermenter around your brewery.

The reinforced four-leg design not only increased the stability and strength of the conical, it also allowed the unit to stand taller, thereby eliminating the need for extensions in almost every situation. An elbow, a sight glass, or the Flex Chamber can be mounted under the unit with room to spare.

Handles Made for Handling
Although we don’t recommend lifting and moving a full conical, there may be times when you need to do so with the help of a friend. The beefy handles are built for it and won’t let you down. The handles feature molded silicone over stainless for a solid, comfortable grip, and are uniquely designed to stop half-way when they swing out, so you won’t crush your fingers.

Adjustable Feet
The X1 Uni comes standard with thread-in adjustable feet. If your home brewery has uneven flooring, you can quickly and easily level out the fermenter. The feet can be swapped out with high-quality casters at any time.

Maine Brewing Supply is an authorized retailer for the entire line up of BrewBuilt parts & equipment. We are only displaying a sampling here because our website is currently under construction - you will not find pricing cheaper online guaranteed - please shop local & call us at 207/791-2739 or email us at MaineBrewingSupply@gmail.com with any questions or orders

Size:

7 Gallon 14 Gallon 27 Gallon 42 Gallon

Quantity:

MaineBrewingSupply@gmail.com

Other Features You’ll Love:

Downward-facing Blowoff U Barb prevents blow off tubing from kinking and is much easier to remove and clean than a fixed stainless blow off
Internally etched volume markers in gallons and liters
Stainless steel lid clamp with single-piece molded silicone gasket

Optional Upgrades
The base model X1 Uni allows you to purchase the conical at the most affordable price and upgrade as you go. All of the accessories included with the X1 Uni+ can be purchased separately, so you can start fermenting now and come back later to add features and improve your process.

Flex Chamber - Trub Separator & Yeast Harvester
The pressurizable Flex Chamber attaches directly to the butterfly dump valve and can be used for removing trub, harvesting yeast, and many other tasks. Ball lock adapters can be attached to the threaded ports on either side, allowing you to connect oxygenation or carbonation stones, or flush the Flex Chamber with CO2 and use it to inject hops or other ingredients into your conical.
Pressure Pack with Clear Float Technology
The Pressure Pack features a unique floating racking tube that can be used for taking samples, keg transfers, or serving finished beer. This innovative feature draws beer from the top down, which means you’re always pulling the clearest, most sediment-free beer possible. Using pressure to draw a sample from the floating dip tube will also eliminate the tiny bit of oxygen that would be injected into your beer every time the traditional sample valve is opened.
Glycol-ready X1 CoolStix™
Drop in the X1 CoolStix for an easy-to-use, innovative solution for maintaining fermentation temps. Fits perfectly with the Pressure Pack's 1.5" T.C. port, or you can replace the Uni's 4" T.C. port with a 4" to 1.5" T.C. reducer. Cycle cooling solution through the CoolStix using either an IceMaster Glycol Chiller or a BrewBuilt Chiller Pump Kit placed in ice water.
BrewBuilt Kit for Fermetning Under Pressure (Optional Kit is Required to Ferment Under Pressure)
The Pressure Relief Valve (PRV) that comes with the conical is not sufficient for fermentation as it can become clogged with Krausen. To ferment under pressure the Pressure Fermentation Kit is required. This no-compromises kit includes the same hardware you will find on a commercial unitank, including a dedicated pro level spunding valve, a sealed pressure gauge, and a dedicated commercial PRV. Read more about these key hardware features in the kit copy. Also included is liquid Foam-Axe which helps reduce Krausen. Fermenting under pressure will reduce esters and fusel alcohol production, and enable you to ferment lagers at ale fermentation temperatures. Please read and follow all special instructions that come with the kit as well as your instruction manual.
High Roller Caster Set
Go mobile with this heavy-duty caster set. Your fermenter moves around the brewery a lot, so why not give it some glide? Roll from sanitizing to kettle transfer to keg transfer to cleaning with minimal effort. Moving a stainless conical around can be taxing. Give your back a break and upgrade your conical with a set of rolling casters.

X1 Uni Conical Features:

304 stainless steel construction
Mirror polish finish
Welded tri-clamp ports
Single-piece lid clamp
Built-in 15 psi PRV (Not sufficient for fermentation - optional Pressure Fermenation Kit required for pressure fermentatios)
Internally etched volume markers

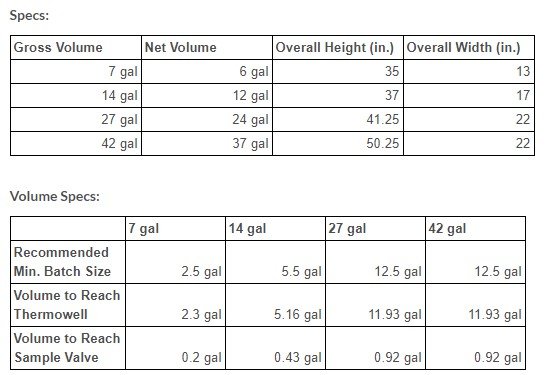

Recommended minimum batch size is based on the volume needed to submerge the thermowell, allowing you to use a temperature controller to maintain fermentation temps.
